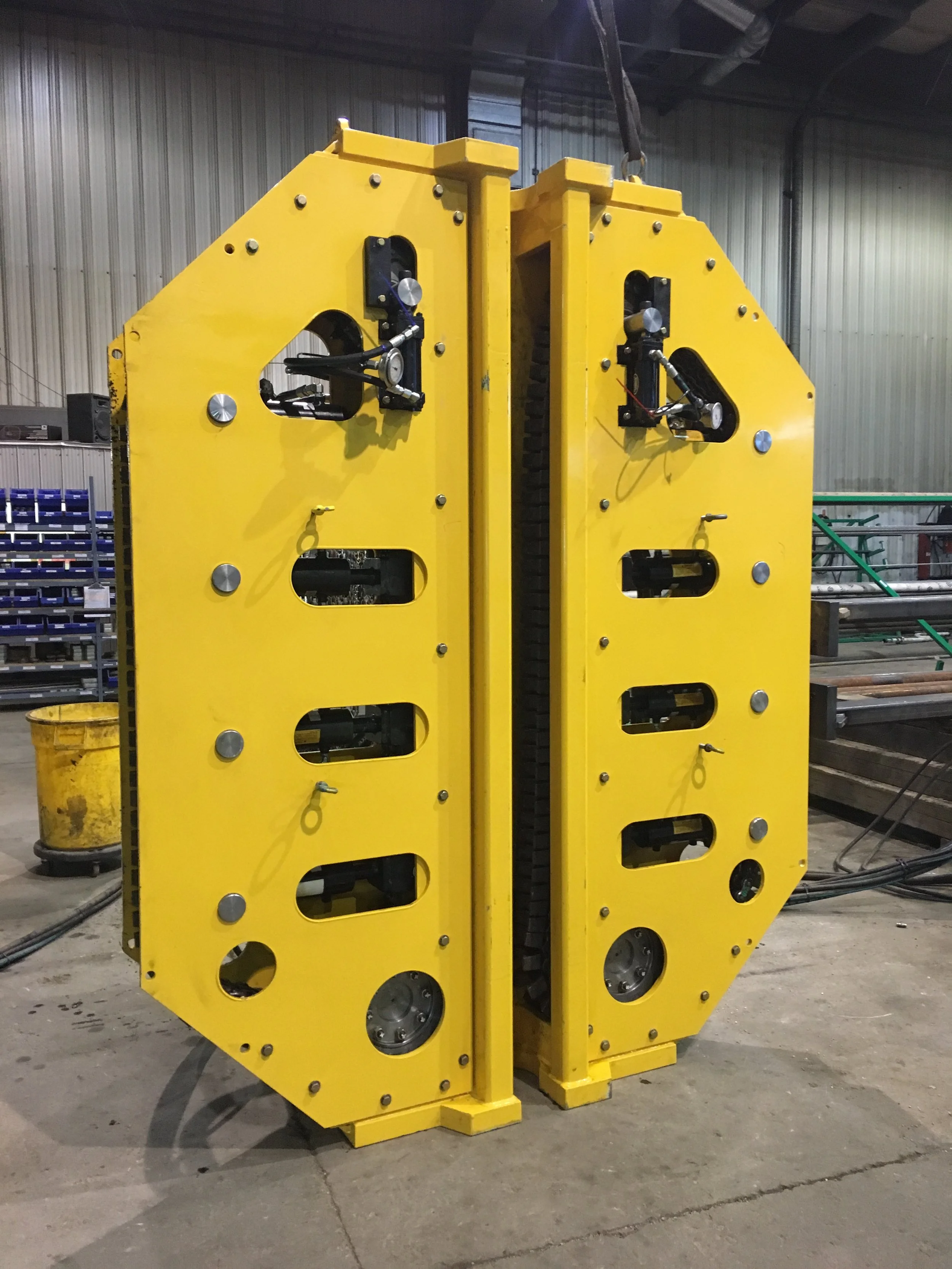

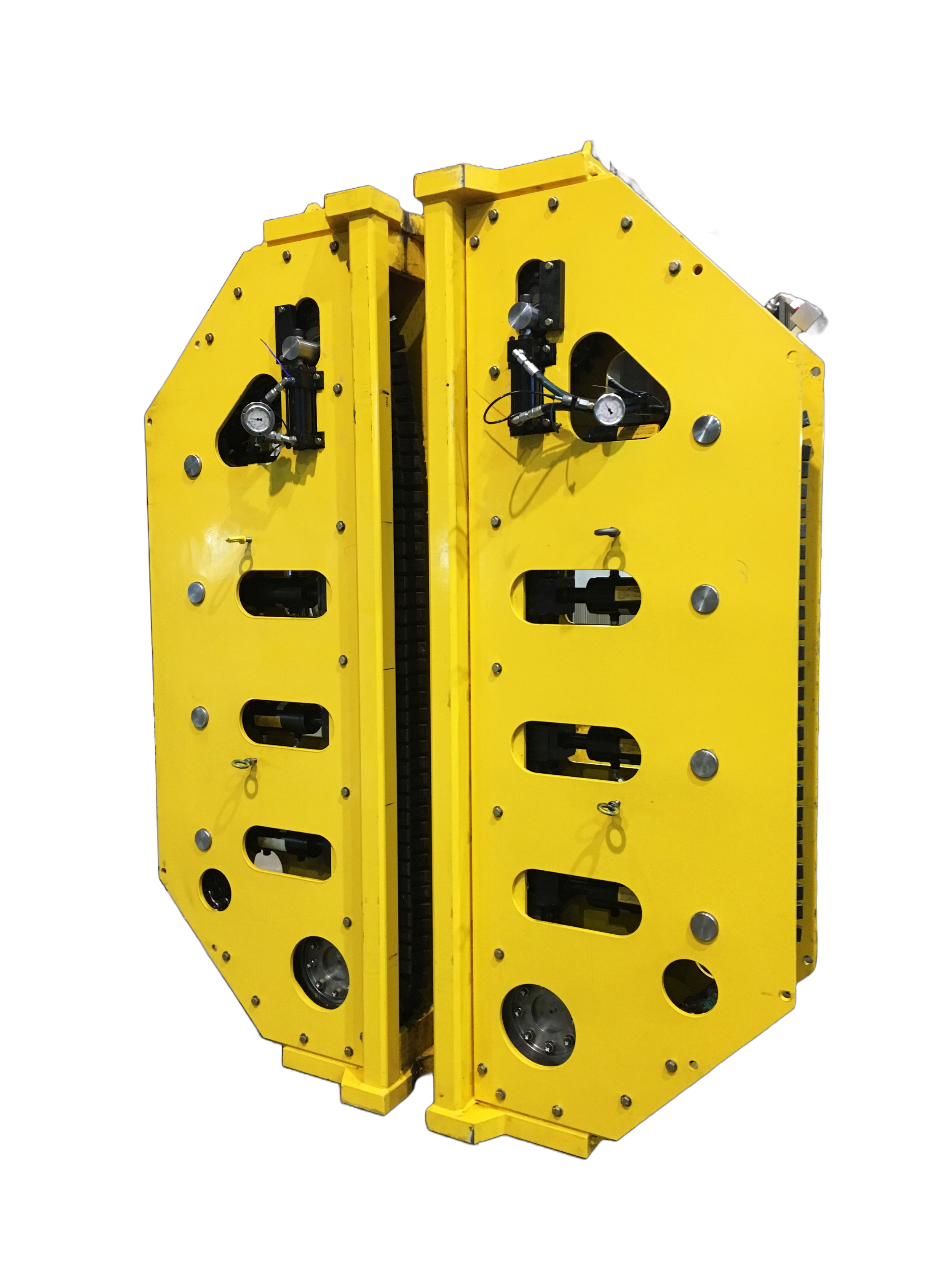

Production Tubing Injector (PTI)
Introducing the Production Tubing Injector - the ultimate solution to upgrade your conventional pulling rigs and take them to the next level of efficiency and performance. This innovative product is designed to push completion and work-over strings into extended reach horizontal and low-pressure well bores, provides an array of benefits that revolutionize your completions and light rig assist snubbing operations.
One of the key advantages of the Production Tubing Injector is its ability to upgrade your conventional pulling service rigs to push stick tubing, without the need for snubbing or coiled tubing units. This not only saves time but also reduces operational costs, making it an incredibly cost-effective solution for your business.
Rigging up is now faster and more straightforward than ever, thanks to the Production Tubing Injector's simple controls and ability to run off the rig hydraulic system. The same rig crew can be utilized for both the rig and injector, allowing for a seamless transition from drawworks to pushing and vice versa.

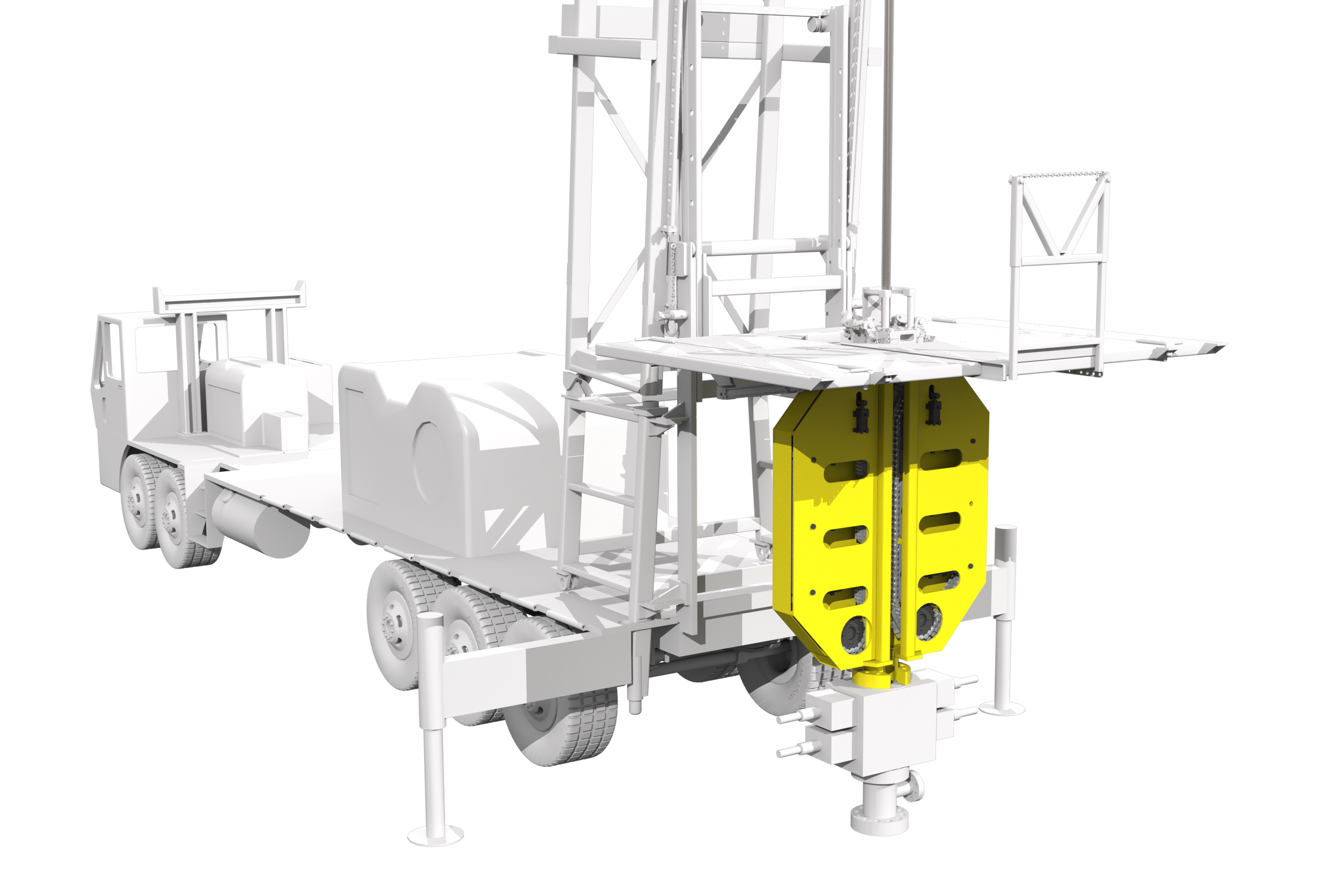

Designed to be compact and fit for purpose, the Production Tubing Injector is installed below the work floor of a conventional pulling rig, making it easy to use and ensuring that it takes up minimal space. The open face design and direct mounting to the wellhead make it even more user-friendly, and with a slip load capacity of 200,000 lbs, you can be assured of its reliability and durability.
This state-of-the-art product boasts technical specifications that make it a force to be reckoned with. With a 7-1/16" flange on the bottom for mounting to the BOP stack, it can handle 2 3/8", 2 7/8", and 3 1/2" sizes, and offers 20,000 lbs of push at 90 feet/min. Weighing in at 5500 lbs and measuring 30" D x 68" W x 114" H, the Production Tubing Injector is compact and easy to maneuver, making it an essential addition to your drilling operations.
Automated Rig Technologies’ Production Tubing Injector is the perfect solution for those who want to improve the efficiency and performance of their drilling operations. With its innovative design, superior technical specifications, and cost-effective benefits, it is the go-to product for upgrading your conventional pulling rig. So why wait? Get in touch with us today and take your completions and snubbing operations to the next level!
Benefits
• Upgrades Conventional Pulling Service Rigs to Push Stick Tubing
• No Snubbing or Coiled Tubing units required
• Fast rig up
• Runs off of rig hydraulic system
• Simple controls
• Same rig crew for Rig and injector
• Seamlessly transition from Drawworks to pushing and vice versa
• Compact, fits under existing work floor
• Open face
Features
• Fit for Purpose Designed Compact Stick Tubing & Pipe Injector installed below the Work Floor of a Conventional Pulling Rigs
• Designed to Continuously Move Single and Double Stands of Tubing and Pipe
• No Coiled Tubing or Snubbing Rigs Required
• Slips mount directly to frame
• Bolts directly to wellhead
Technical Specifications
• 7-1/16” Flange on bottom for mounting to BOP stack
• Handles 2 3/8”, 2 7/8”, & 3 ½”
• 20,000 lbs of push @ 60 feet/min
• Weight: 5500 Lbs
• Dimensions: 30” D x 68” W x 114” H
• Slip Load Capacity: 200,000 Lbs
- Typical Hydraulic Tong Circuit supply is sufficient (60GPM @3,000PSI)
